Metal Halide Light Equipment with External Control
LA-180Me-R (Hayashi Watch Co., Ltd.)



LA-180Me-R

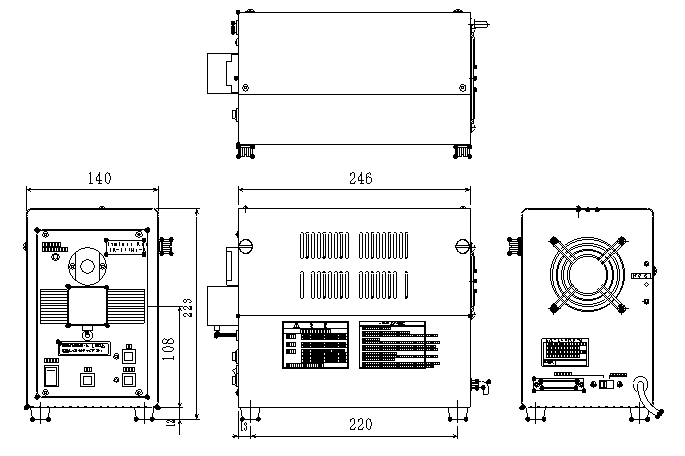

Dimensional Outline Drawing

Appearance



Specifications

LA-180Me-R
Rated Input Voltage 100 VAC (Input Voltage Range 90 VAC - 115 VAC)
Rated Input Frequency 50/60 Hz
Power Consumption 232W
Lamp Type 180 W Metal Halide Lamp (Direct Current Lighting)
MCR180FK33H Color Temperature: 7000K
1Average Illumination: 2.5 Million Lux (Initial Value)
2Average Life for 2,000 Hours
Lamp Indicator Green Pilot Lamp for Lamp Lighting
Lighting System Direct Current Lighting System
Light Quantity Adjustment Mesh Type Aperture
Light Quantity Adjustment: 0% - 100%
Protective Functions Overheat Protection Circuit: Output Interception System (Returned by Power Supply Restoring)
Cooling System Forced Fan Cooling
Optical Filter Built in Cold Filter, Heat Filter
Operating Temperature / Humidity -10?C to +45?C / 30% to 80% RH
Remote Function 1) Light Quantity Adjustment: D0 - D7 Digital 8 Bit (256 Gradation), Operated by SET Signal Input
2) Lamp ON / OFF Function: Lamp Lighting when turning on POWER switch and inputting a signal.
3) Lamp Non-lighting Output: Output when running out of lamp and non-lighting.
4) BUSY Output: Output when mesh aperature board is working. (Pulse Motor for Light Quantity Adjustment)
Breaker 125 VAC 3.15A
External Dimensions W 140 * H 223 * D 246 mm (Dimensions except Projection)
Weight 4.8 kg

1. The illumination is measured at fiber unity diameter 8 mm, 500 mm in length and at the position of 15 mm from a light projection edge.
2. The lamp life is the average time when light quantity reaches 50% of initial illumination. It is not guarantee level but experimental value.
(The lamp lighting condition is a cycle of light on for two hours and 45 minutes and light off for 15 minutes. The life is different by lighting conditions.)

Important Note about the Power Supply and Repair

Power supply of some products is adapted to Japanese 100V specifications. In case of using it outside of Japan, please be sure to use a voltage converter for each country/area.
Also, when you need to repair the products purchased from Pulse Denshi, please send them back to us so we can offer repair cost estimates. Your local service center may not accept such repair.
