Video Microscope
DS-3UX-3 / DS-3N-USB / DS-3N
- Micro Square Co., Ltd.



Lightweight Compact Video Microscope at Low Price

DS-3UX-3
 DS-3N-USB
 DS-3N

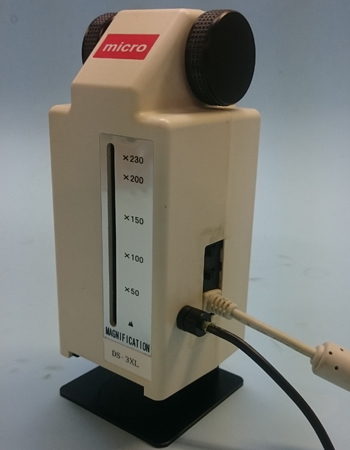

Product Appearance
 Product Appearance
 Product Appearance


Specifications of DS-3UX-3

Model Name DS-3UX-3
Connection Computer
Camera /
Interface		 2 million pixels Digital CMOS / USB 2.0
Operating Environment:
Display Resolution (PC Monitor)
 1600×1200
Operating Environment: Computer OS: Windows XP SP2 Windows 2000 SP4
CPU: Pentium 2.0 GHz and higher
Memory: 512 MB and higher
Size Height 148 (Maximum length 218 when using a fixed stand), Width 65, Depth 66 (mm)
Weight 600g
Illumination White LED
Magnification DS-3UX-3: 1 - 200 times
DS-3UXL-3: 1 - 100 times *Long focus type
DS-3UX-SH: 120 - 1000 times *High magnification type
Package Software Measurement Software: MicroScale2
Functions: Distance between two points, Radius and Area of a Circle, Quadrangular Distance of Length and Breadth and angles of three points of area , Two Line-angle, TEXT Input, Two Screen Comparison, Marker Indication, Calibration Data Recording, Image Capture, Transfer of Data to EXCEL
Viewer Software
Functions: Image capture, Resolution selection
Other Accessories Glass scale for calibration, Monochrome stage, Storage case
* Cable for the computer connection comes from the main body.

Data « WD = Distance between scope and work (mm) »

Model Name DS-3UX-3 DS-3UXL-3
Range of Vision (mm) W.D (mm) W.D (mm)
25 × 33 132
10 × 13 30
7 × 9.3 42
4 × 5.3 11.5 27
3 × 4 22.5
2.5 × 2.3 6.5 19.5
2× 2.7 5 17
1.7 × 2.3 4
1.5 × 2 3.5
1.3 × 1.7 2.5
* WD of DS-3UX-SH is approximately 5 mm - 7 mm.



Sample Image

DS-3UX-3
Coffee Sugar
Coffee Sugar
 Coffee Sugar (High magnification)
Coffee Sugar (High magnification)
 Tie
Tie
Screw
Screw
 Molded Product Burr
Molded Article Burr
 Tip of Calligraphy Pen
Tip Calligraphy Pen
File
File
 File (High Magnification)
File (High Magnification)
 Electronic Board
Electronic Board
DS-3UX-SH
IC
IC
 Enlarged Bonding Part
Enlarged Bonding Part
 High-magnification Observation of Bonding Part
High-magnification Observation of Bonding Part


Specifications of DS-3N-USB

Model Name DS-3N-USB
Connection PC / TV
Camera Analog CCD with 410,000 pixels
Interface When using PC: USB 2.0 (with USB Converter) 640 x 480 (VGA)
When using TV: NTSC Video Input
Operating Environment:
Display Resolution (PC Monitor)
 640 x 480 (VGA)
Operating Environment: Computer OS:Windows Vista, Windows XP SP2, Windows 2000 SP4
CPU: Pentium 2.0 GHz and higher
Memory: 512 MB and higher
Size Height 148 (Maximum length 218 when using a fixed stand), Width 65, Depth 66 (mm)
Weight 400g
Illumination White LED
Magnification DS-3N-USB: 1 - 450 times
DS-3NL-USB: 1 - 230 times *Long focus type
DS-3NSL-USB: 1 - 120 times *Long focus type
Package Software Measurement Software: MicroScale2
Functions: Distance between two points, Radius and Area of a Circle, Quadrangular Distance of Length and Breadth and angles of three points of area , Two Line-angle, TEXT Input, Two Screen Comparison, Marker Indication, Calibration Data Recording, Image Capture, Transfer of Data to EXCEL
Viewer Software
Functions: Image recording, Full-screen display
Other Accessories One set of connection cable for PC, One set of connection cable for TV, Three pieces of diffusing filter, Monochrome stage, Storage case, Glass scale for calibration

Magnification Data

Model Name DS-3N-USB DS-3NL-USB DS-3NSL-USB
Range of Vision (mm) W.D (mm) W.D (mm) W.D (mm)
20 (13 x 10) 50 110 180
50 (5.2 x 4) 20 51 85
100 (2.6 x 2) 11 33 49
200 (1.3 x 1) 5.5 23
300 (0.87 x 0.67) 3.5
400 (0.65 x 0.5) 2.5
450 (0.55 x 0.4) 2


Specifications of DS-3N

Model Name DS-3N
Connection TV
Camera Analog CCD with 410,000 pixels
Interface NTSC Video Input
Size Height 148 (Maximum length 218 when using a fixed stand), Width 65, Depth 66 (mm)
Weight 400g
Illumination White LED
Magnification DS-3N: 1 - 450 times
DS-3NL: 1 - 230 times *Long focus type
DS-3NSL: 1 - 120 times *Long focus type
Accessories One set of connection cable, Three pieces of diffusing filter, Monochrome stage, Storage case

Magnification Data

Model Name DS-3N DS-3NL DS-3NSL
Range of Vision (mm) W.D (mm) W.D (mm) W.D (mm)
20 (13 x 10) 50 110 180
50 (5.2 x 4) 20 51 85
100 (2.6 x 2) 11 33 49
200 (1.3 x 1) 5.5 23
300 (0.87 x 0.67) 3.5
400 (0.65 x 0.5) 2.5
450 (0.55 x 0.4) 2

Important Note about the Power Supply and Repair

Power supply of some products is adapted to Japanese 100V specifications. In case of using it outside of Japan, please be sure to use a voltage converter for each country/area.
Also, when you need to repair the products purchased from Pulse Denshi, please send them back to us so we can offer repair cost estimates. Your local service center may not accept such repair.
