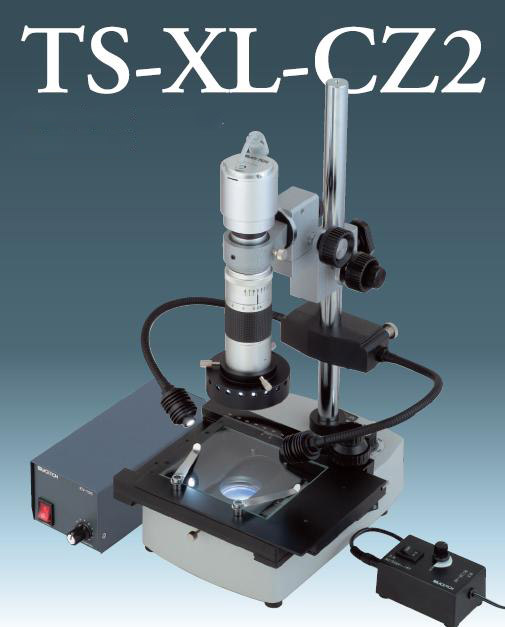

 TS-XL-CZ2
Zoom Microscope System, High End Type - Sugitoh Co., Ltd.
Basic Set
| Product Name |
Model |
Specifications |
| High Magnification Macro Zoom Lens |
TS-93005
|
Long working distance: 82 mm (from front lens). Optics magnification: 0.8 - 6.4 x
|
| Stand Adapter |
TS-SA-5
|
Mechanism for attaching to rack & pinion, with a standard tripod screw of a camera
|
| Megapixel USB Camera |
TS-CA-200M
|
2M pixels CMOS color USB camera, 1/2 inch, C-mount
|
| LED Ring Light |
TS-LAX-390
|
3ø 90 lamp, high intensity white LED ring light, direct ray type.
|
| Dedicated Power Supply for LED Light |
TS-KV-100
|
LED power supply box with control volume
|
Double Head Flexible Arm Type
LED Oblique Light
|
TS-LAX-2H
|
Shape-memory SUS flexible arm is used, installed with 1.4 W white LED
Dedicated light control for double head type and AC power supply
|
| Light Control |
TS-2H02-LC
|
| AC Power Adapter |
TS-2H02-AC
|
| Camera Stand with Transillumination |
TS-0151NH
|
Transillumination with control volume is mounted, with spare halogen bulb
X-axis: coarse adjustment, 20 mm ahead, and movable / Z-axis: coarse/fine movement, above 30 mm and lower 10 mm from center
|
XY Stage with Transillumination
Hole and Scale
|
TS-XY-BL1
|
X-axis: 70 mm, movable / Z-axis: 80 mm, 30 mm movable, load capacity: 3.5 kg
|
Option
 Replacement Parts for Set Products
 |
 |
 |
| Model: |
TS-XY-BL2 |
| Product Name: |
XY stage with transillumination |
| Specifications: |
Rotary X-axis: 70 mm movable / Z-axis: 80 mm, 30 mm movable.
Load Capacity: 3.6 kg
*We can deliver the package with this XY stage instead of standard TS-0152.
|
|
| Model: |
TS-LAX-590 |
| Product Name: |
5ø 90 lamp, high intensity white LED ring light
* We can deliver the package with this 5ø 90 lamp instead of 3ø 90 lamp.
|
|
| Model: |
TS-CA-130MIII |
| Product Name: |
1.3 M pixels USB camera
* USB camera can be downgraded from standard TS-CA-200M to 1.3 M pixels.
|
|
Interchangeable Front Converter Lens
* Available to TS-93005 only.
 |
 |
 |
| Model: |
TS-93017-N |
| Product Name: |
0.5x front converter for TS-93005
|
|
| Model: |
TS-93018 |
| Product Name: |
2x front converter for TS-93005
|
|
| Model: |
TS-93019 |
| Product Name: |
3x front converter for TS-93005
|
|
Replacement Zoom Lens
 |
 |
 |
| Model: |

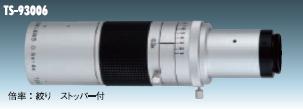

TS-93006 |
| Product Name: |
Middle magnification macro-zoom lens
|
| Working Distance: |
132 mm (from front lens)
|
| Optical Magnification: |
0.5 - 4.0x
|
|
| Model: |

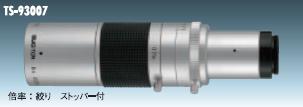

TS-93007 |
| Product Name: |
Super low magnification macro-zoom lens
|
| Working Distance: |
249 mm (from front lens)
|
| Optical Magnification: |
0.25 - 2.0x
|
|
| Model: |

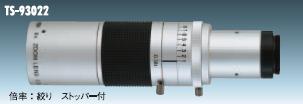

TS-93022 |
| Product Name: |
Low-magnification macro-zoom lens
|
| Working Distance: |
170 mm (from front lens)
|
| Optical Magnification: |
0.38 - 3.0x
|
|
Replacement Extender
 |
 |
 |
 |
| Model: |
TS-EX-15 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
| Model: |
TS-EX-20 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
| Model: |
TS-EX-30 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
| Model: |
TS-EX-50 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
|
