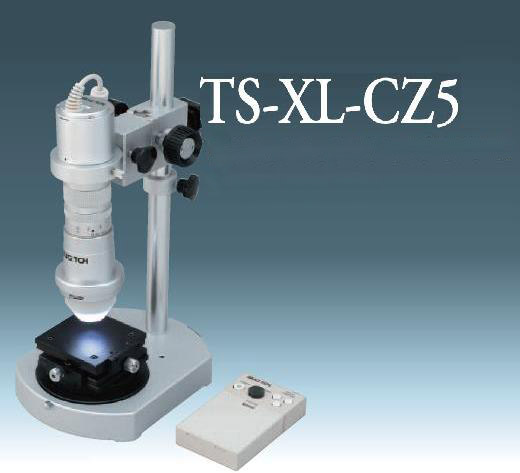

 TS-XL-CZ5
Zoom Microscope System, Standard Type - Sugitoh Co., Ltd.
Basic Set
| Product Name |
Model |
Specifications |
| High Magnification Macro Zoom Lens |
TS-93003N-CZ5
|
Please refer to the following lens optical specifications.
|
| Megapixel USB Camera |
TS-CA-130MIII
|
1.3 M pixels CMOS color USB camera, 1/2 inch, C-mount.
|
| LED Ring Light for CZ5 |
TS-LAX-CZ5M
|
18 lamp, high intensity white LED multi-ring light, direct ray/diffusion type
Battery holder, LED three-way split control-type
|
| Battery Box for LED Ring Light |
TS-LAX-LCC
|
| AC Power Adapter for TS-LAX-LCC |
TS-WL5M-AC
|
| Simple & Compact Camera Stand |
TS-0147NH
|
Pole ø 20 mm, t = 300 mm
Z-axis, coarse adjustment, above 30 mm from center, 10 mm lower
|
70 mm Square Compact XY Stage
|
TS-XY-70
|
Double axes: +/-25 mm movable, load capacity: 4.0 kg
|
TS-93003N-CZ5 Optical Specifications
| Optics Magnification: |
0.65 to 5.20X
|
| Working Distance (W.D.) from Front Lens |
35.7 mm +/- 5%
|
| Object Side Resolution (lines/mm) |
80 to 400 lines
|
| Depth of Field |
0.57 mm to 0.01 mm
|
| TV Distortion |
+0.07 to +0.09
|
| Object Image Circle |
ø12.1 mm to 1.6 mm
|
| Lens Constitution |
9 Groups 12 Elements
|
| Outer Dimensions / Weight |
ø40 x L117 (mm) / 180g
|
Option

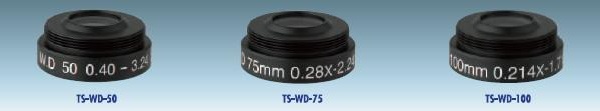

 Interchangeable Front Converter Lens
WD Fixed Series for TS-93003
| Product Name |
Model |
Specifications (TS-93003 N-CZ5 in use) |
| WD 50 mm Fixed FC |
TS-WD-50 |
4.00 - 3.240x (working distance is 50 mm from front lens)
|
| WD 75 mm Fixed FC |
TS-WD-75 |
0.280 - 2.240x (working distance is 75 mm from front lens)
|
| WD 100 mm Fixed FC |
TS-WD-100 |
0.214 - 1.712x (working distance is 100 mm from front lens)
|
Replacement Extender
 |
 |
 |
 |
| Model: |
TS-EX-15 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
| Model: |
TS-EX-20 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
| Model: |
TS-EX-30 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
| Model: |
TS-EX-50 |
| Product Name: |
1.5x extender
|
| Specifications: |
4.1 mm length of C-mount (except for male screw part)
|
|
Replacement Parts for Illumination
| Product Name |
Model |
Specifications |
| Filter Covering |
TS-CZ5-1 |
ø44 mm of diffusion, polarizing plate frame, attachable to TS-LA-CZ5
|
| Glass Plate Diffuser |
TS-CZ5-2 |
ø39.5 mm of doughnut form, diffusion frosted glass plate
|
| Glass Plate Polarizer |
TS-CZ5-3 |
ø39.5 mm of doughnut form, glass plate polarizer
|
| Area Change Filter |
TS-CZ-5-4 |
With ø18 mm glass plate polarizer frame for zoom tip, lower attachment
|
| LED Light Adapter |
TS-LA-AD40 |
Screw-type adapter for LED ring light
|
| 90 Lamp, High Intensity LED Ring Light |
TS-LAX-390 |
3 ø90 lamp, high intensity white LED ring light
|
| Battery Box for LED Light |
TS-KV-100 |
Power supply box dedicated for LED with light control, 100 - 220 V (universal)
|
|
